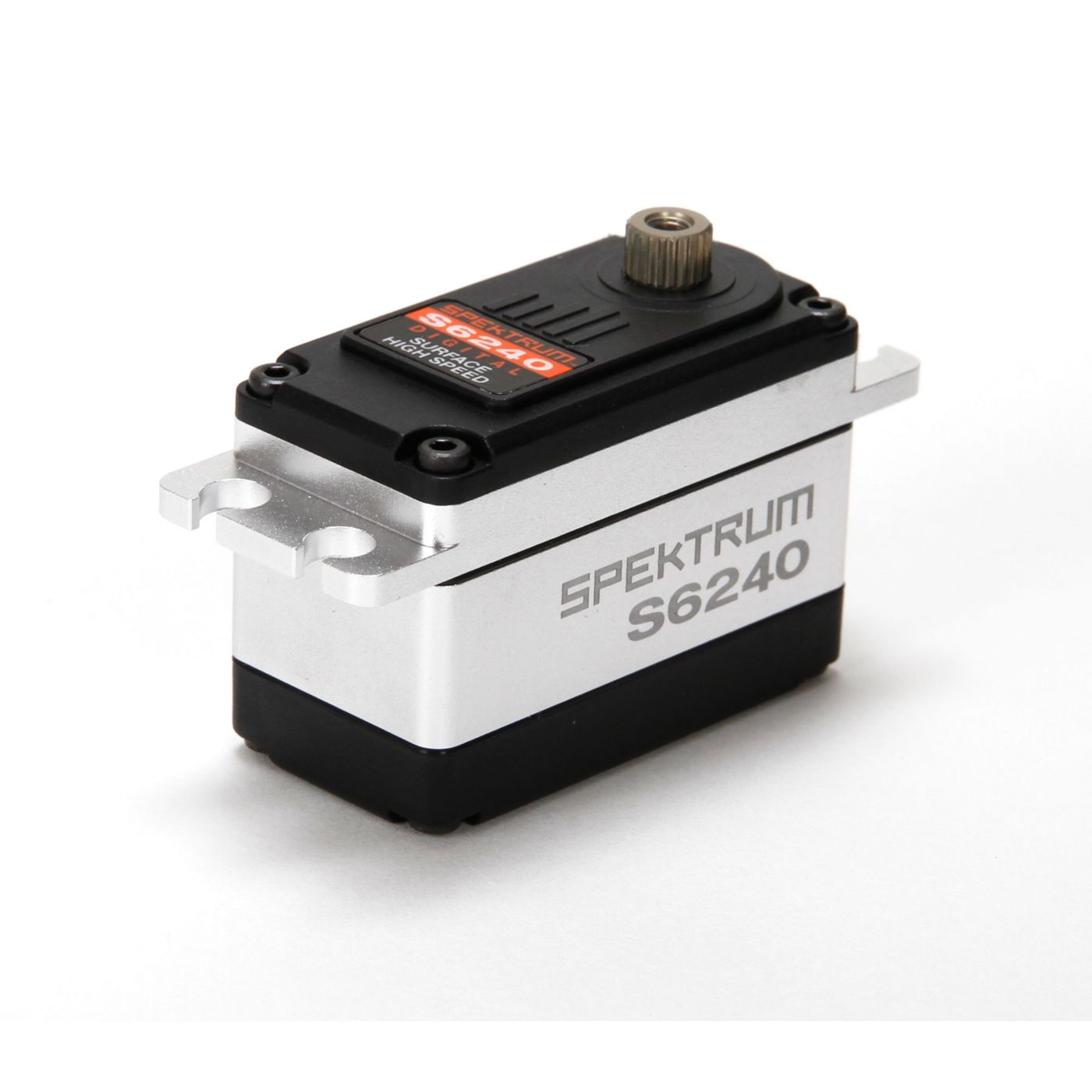

S6240 HIGH SPEED, DIGITAL SERVO Item #
|
This product is not available
|
|
|
0.124 kg
|
|
Can be shipped by parcel.
|
Features
•Removable wire harness with different lengths available
•7075 Aluminum hard anodized output shaft/main gear with steel internal gears
•Aluminum case for good heat dissipation
•Aluminum mounting tabs
•NMB dual main bearings
•23T output shaft
•Waterproof
•1-Year Limited Warranty
SPECIFICATIONS:
Size Category: | Specialty |
Type: | Digital |
Application: | 1/10 Buggy, Truck, On-Road |
Torque: | 208 oz-in (15.0kg-cm) @ 6.0V |
Speed: | 0.08 sec/60 deg @ 6v (no load) |
Length: | 1.61 in (41mm) |
Width: | 0.82 in (20.9mm) |
Height: | 1.18 in (30mm) |
Weight: | 2.1 oz (59.5g) |
Bushing Or Bearing: | Bearing |
Bearing: | Dual |
Motor Type: | Coreless |
Connector Type: | Z-Connector, removable |
Gear Type: | Metal |
Gear Material: | Steel, Aluminum |
Current Draw Idle: | 9.8 mA @ 6.0V |
Current Draw Stall: | 4.9A @ 6.0V |
Voltage: | 6.0V |
Deadband: | 4µs |
|
